• ANB-HC

    ANB-HC

    FEATURE APPLICATION
      ˙ Maximum power density   ˙ DC/DC converter
      ˙ Miniature surface mount design   ˙ Desk-top type PC
      ˙ Modified standard products are available   ˙ Notebook type PC
      ˙ High current low voltage applications   ˙ Serever
            ˙ On board power supply

    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

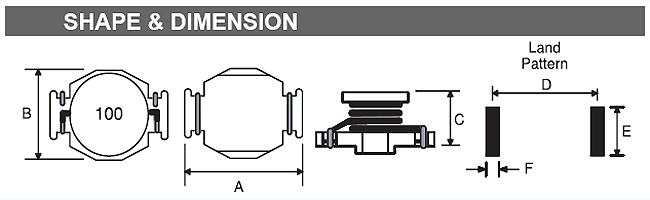

Photo Series Product Name Download A B C D E F Select

ANB 1305-HC

13.21 m/m Max
9.91 m/m Max
6.35 m/mMax
10.16 m/m
4.06 m/m
1.52 m/m

ANB 2207-HC

22.35 m/mMax
16.26 m/mMax
8.50 m/m Max
17.53 m/m
8.64 m/m
3.18 m/m
