    ANB-C

    FEATURE APPLICATION
      ˙ DC-DC Converter   ˙ Maximum power density
      ˙ Desk-Top Type PC   ˙ Modified standard products are available
      ˙ Notebook Type PC   ˙ Miniature surface mount design
      ˙ On Board Power Supply

    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

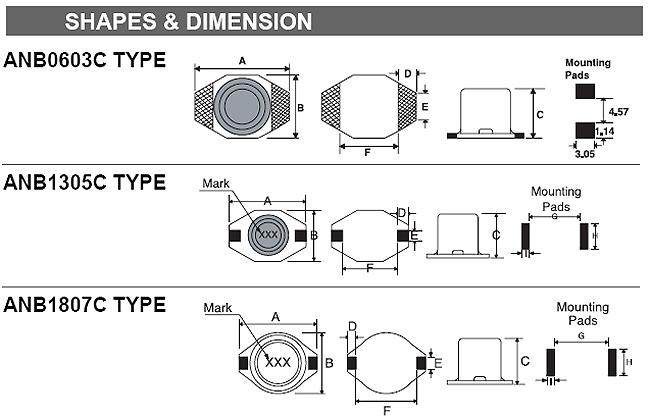

Photo Series Product Name Download A B C D E F G H I Select

ANB 1305C

13.50 mm Max
9.50 mm Max
5.20 mm Max
2.54 mm
2.54 mm
8.00 mm
737 mm
3.0 mm
2.79 mm

ANB 1807C

18.80 mm Max
15.5 mm Max
7.20 mm Max
2.54 mm
2.54 mm
13.5 mm
12.45 mm
3.0 mm
2.79 mm
