    FEATURES
    The rated current indicates the value of current when the inductance is 10% lower than its initial value at DC superposition or DC current when At=45℃,whichever is lower

    APPLICATION
    ˙ DC/DC converter ˙ Digital camera
    ˙ Camcorder ˙ G.P.S.
    ˙ LCD TV ˙ Portable CDR-W
    ˙ MP3-player ˙ PDA (desktop)

    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

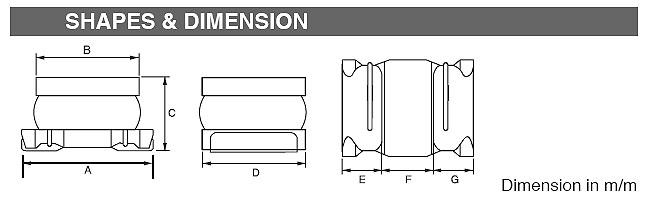

Photo Series Product Name Download A B C D E F G Select

SNI04032

4.5±0.3mm
3.6±0.2mm
2.6±0.2mm
3.2±0.2mm
1.0min
1.0min
1.0min

SNI03025

3.2±0.3mm
2.5±0.2mm
2.0±0.2mm
2.5±0.2mm
0.9±0.3mm
1.3±0.2mm
0.9±0.3mm

SNI03016

3.2±0.3mm
2.3±0.2mm
1.8±0.2mm
1.6±0.2mm
0.7min
0.7min
0.7min
