• SSB

    SSB

    FEATURE
      ˙ Various high power inductors are superior to be high saturation for surface mounting.
      ˙  Available in magnetically shielded.

    APPLICATION
      ˙ DC/DC converters   ˙ Portable terminal equipment
      ˙ LCD monitor   ˙ OA equipment
      ˙ Notebook PC   ˙ Digital camera
      ˙ Power supply for VTR

    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

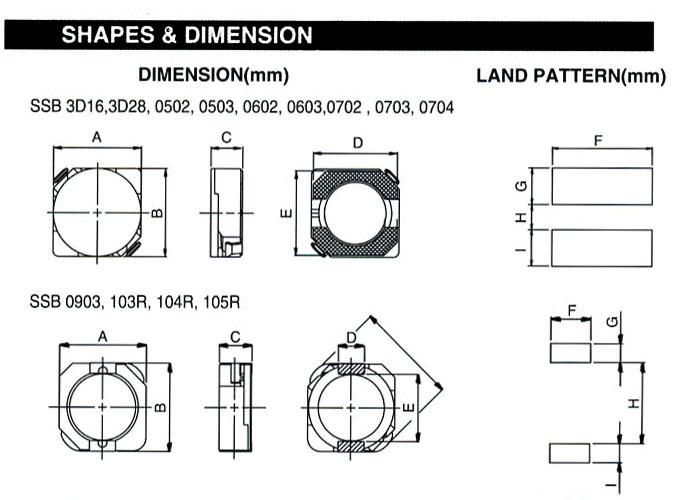

Photo Series Product Name Download A B C D E F G H I Select

SSB 3D16

3.8±0.3
3.8±0.3
1.6±0.3
3.7
3.7
4
1.6
1.2
1.6

SSB 3D28

3.8±0.3
3.8±0.3
3.3±0.3
3.7
3.7
4.3
1.6
1.2
1.6

SSB 0502

5.30Max.
5.30Max.
2.00Max.
4.5
4.5
5.3
1.9
1.5
1.9

SSB 0503

5.30MAX.
5.30Max.
3.00Max.
4.5
4.5
5.3
1.9
1.5
1.9

SSB0602

6.0±0.3
6.0±0.3
2.0±0.3
5.7
5.7
6.3
2.15
2
2.15

SSb 0603

3.0±0.3
3.0±0.3
3.0±0.3
5.7
5.7
6.3
2.15
2
2.15

SSB 0702

6.7±0.3
6.7±0.3
2.0Max.
6.5
6.5
7.3
2.65
2
2.65

SSB 0703

6.7±0.3
6.7±0.3
3.0Max.
6.5
6.5
7.3
2.65
2
2.65

SSB0704

6.7±0.3
6.7±0.3
4.0Max.
6.5
6.5
7.3
2.65
2
2.65

SSB 0903

8.3Max.
8.3Max.
3.0Max.
2.8
6.1
3.2
1.6
6
1.6

SSB 103R

10.3Max.
10.5Max.
3.1Max.
3
7.7
3.2
1.7
7.7
1.7

SSB 104R

10.0±0.5
10.0±0.5
3.8±0.2
3
7.7
3.2
1.7
7.7
1.7

SSB 105R

10.0±0.5
10.0±0.5
5.1Max.
3
7.7
3.2
1.7
7.7
1.7
