• SQB

    SQB

    FEATURE
      ˙ Available in magnetically shielded.
      ˙ Low DC resistance.
      ˙ Suitable for large currents.
      ˙ Ideal for a variety of DC-DC converter inductor applications.
      ˙ Available on tape and reel for auto surface mounting.

    APPLICATION
      ˙ DC/DC converter
      ˙ Power supplies for : Portable communication equipment
      ˙ Camcorder
      ˙ LCD TV
      ˙ Notebook computer

    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

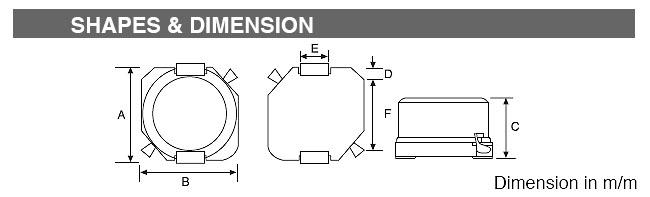

Photo Series Product Name Download A B C D E F Select

SQB0625

6.5 mm Max.
6.5 mm Max.
2.5±0.3 mm
1.5±0.2 mm
2.0±0.2 mm
3.0±0.2 mm

SQB0628

6.5 mm Max.
6.5 mm Max.
2.8±03. mm
1.5±0.2 mm
2.0±0.2 mm
3.0±0.2 mm

SQB0640

6.5 mm Max.
6.5 mm Max.
4.0±0.3 mm
1.5±0.2 mm
2.0±0.2 mm
3.0±0.2 mm

SQB0725

7.5 mm Max.
7.5 mm Max.
2.5±0 mm
1.0±0.2 mm
2.0±0.2 mm
5.0±1.0 mm

SQB0728

7.5 mm Max.
7.5 mm Max.
3.0±0.5 mm
1.0±0.2 mm
2.0±0.2 mm
5.0±1.0 mm

SQB0732

7.5 mm Max.
7.5 mm Max.
3.5±0.5 mm
1.0±0.2 mm
2.0±0.2 mm
5.0±1.0 mm

SQB0745

7.5 mm Max.
7.5 mm Max.
5.2 Max.
1.0±0.2 mm
2.0±0.2 mm
5.0±1.0 mm

SQB1045

11.0 mm Max.
11.0 mm Max.
4.5±0.3 mm
2.0±0.3 mm
3.0±0.3 mm
6.0±0.5 mm

SQB12055

12.5±0.3 mm
12.5±0.3 mm
5.5±0.3 mm
2.0±0.3 mm
3.0±0.3 mm
8.0±0.5 mm

SQB12065

12.5±0.3 mm
12.5±0.3 mm
6.5±0.3 mm
2.0±0.3 mm
3.0±0.3 mm
8.0±0.5 mm

SQB12075

12.5±0.3 mm
12.5±0.3 mm
7.5±0.3 mm
2.0±0.3 mm
3.0±0.3 mm
8.0±0.5 mm
