• SQD

    SQD

    FEATURE
      ˙ The rate current indicates the value of current when the inductance is 10% lower than
    its ⊿t=45℃, whichever is lower.
      ˙  Test FREQ : 100MHz

    APPLICATION
      ˙ DC/DC converter
      ˙ Power supplies for : Portable communication equipment
      ˙ Camcorder
      ˙ LCD TV
      ˙ Notebook computer


    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

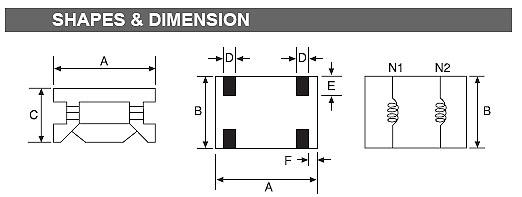

Photo Series Product Name Download A(±3) B(±3) C(±3) D(min) E(min) F(±1) Select

SQD465516

4.6 m/m 5.5mm 1.6mm 0.5mm 1.0mm 0.2mm

SQD508505

5.0 m/m
8.5 m/m
5.0 m/m
1.0 m/m
1.5 m/m
0.2 m/m

SQD750603

7.5 m/m
6.0 m/m
3.0 m/m
1.5 m/m
1.5 m/m
0.7 m/m

SQD100805

10.0 m/m
8.0 m/m
5.0 m/m
1.8 m/m
1.5 m/m
0.8 m/m

SQD121006

12.0 m/m
10.0 m/m
6.0 m/m
2.0 m/m
1.5 m/m
1.0 m/m
