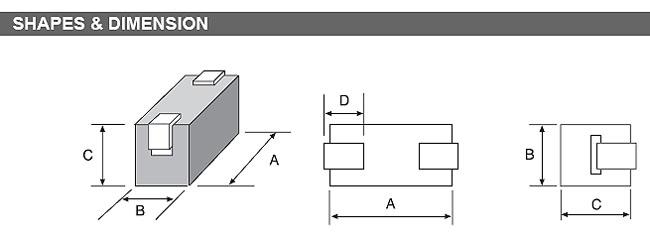

Products EMI SUPPRESSORS AWB AWB Specification Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download DimensionA DimensionB DimensionC DimensionD Impedance(25MHz) Impedance(100MHz) DC Resistance(mΩ)Max. Select AWB-403025 4.00±0.15 mm 3.10±0.10 mm 2.54±0.10 mm 1.35±0.20 mm 23 Min 47±20% 0.6 AWB-853025 8.50±0.15 mm 3.10±0.10 mm 2.54±0.10 mm 2.00±0.20 mm 45 Min 95±20% 0.9 Add to Inquiry List Review Inquiry List Back
