• F4P

    F4P

    FEATURE
      ˙ F4P3216/2012 realizes small size and low profile.
      ˙ High common mode impedance at high frequency effects excel noise suppression performance.
      ˙ Suutable for differential signal line like USB2.0, IEEE1394 and LVDS, becauce F4P3216/2012 does not provide distortion to high speed signal transmission due to its high coupling.
      ˙ Lead is not contained in the product.
      ˙ Small dimension enable higher density packing.

    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

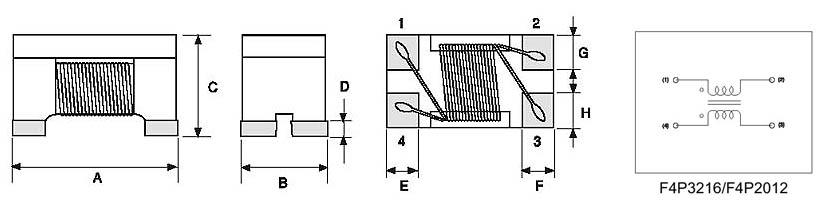

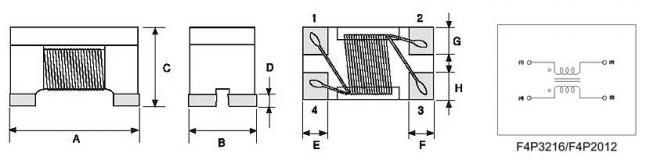

Photo Series Product Name Download A±2 B±2 C±2 D E F G H Select

F4P 3216

3.2
1.6
1.9
0.17
0.6
0.6
0.6
0.6

F4P 2012

2
1.2
1.2
0.17
0.45
0.45
0.4
0.4
