    Transformers


    FEATURE
      ˙ Designed for high density surface mounting.
      ˙  This transformer designed for high performance main transformer and pulse transformer.

    APPLICATION
      ˙ Has multi-terminals to allow for multi-terminal Transformer to be designed.
      ˙ Compact for High DENSITY surface mounting.
      ˙ Designed for Computer, Telecommunication, Hard disk drive, Converter, Inverter...ect.


    Specification

Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download A B C D E Select

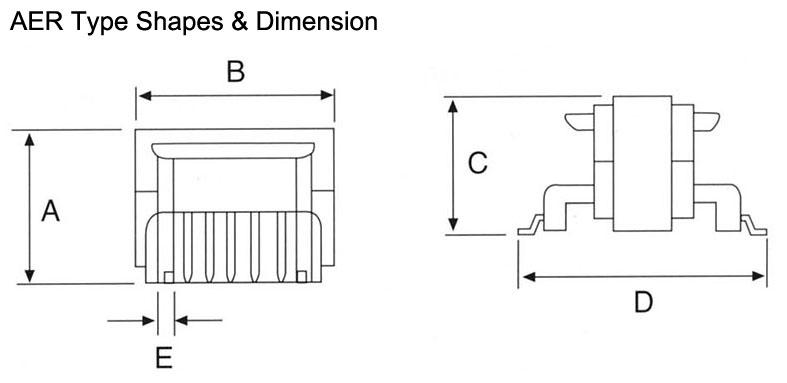

AER-9.5

5.23 mm
9.5 mm
5.23 mm
11.55 mm
0.7 mm

AER-11.5

5.38 mm
10.83 mm
5.38 mm
12.2 mm
0.7 mm

AER-14.5

7.15 mm
14.5 mm
7.15 mm
16 mm
0.7 mm

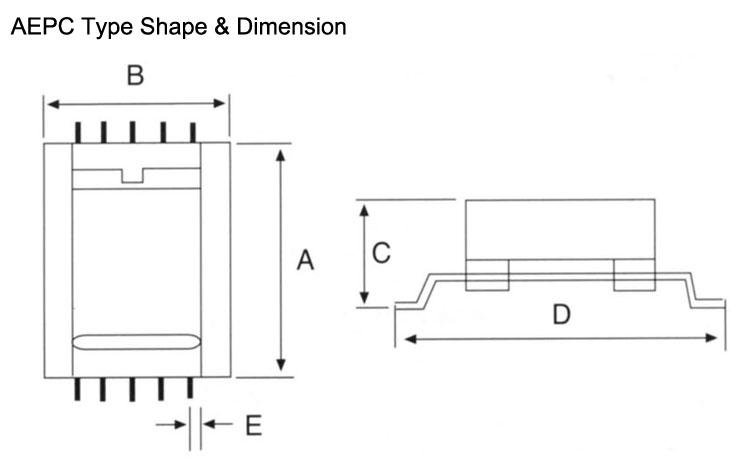

AEPC-13

13.2 mm
13.3 mm
6.9 mm
19.5 mm
0.7 mm

AEPC-19

21.5 mm
20 mm
10 mm
23.9 mm
0.6 mm

AEPC-25

25.5 mm
26.1 mm
10 mm
38.7 mm
0.8 mm
