• ANL

    ANL

    FEATURE
    　 ˙ Utilizing a miniaturized winding structure.
    　 ˙ These products provide high Q characteristics.
    　 ˙ Resin-coated surface enables excellent mounting.
    　 ˙ Low DC resistance design is ideal for low loss.
    　 ˙  Precision inductance tolerance is available.

    APPLICATION
    　 ˙ Personal computers, Hard disk drives.
    　 ˙ ADSL modem and Cable modem.
    　 ˙ Digital camera and other electronic equipment.


    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

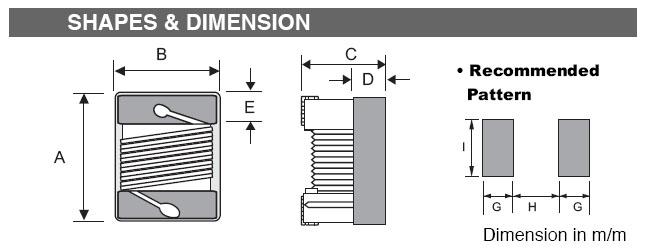

Photo Series Product Name Download A B C D E H I G Select

ANL201212

2.4
1.6
1.4
0.51
0.44±0.1
1
1.8
0.9

ANL252018

2.9
2.5
2.1
12
0.55±0.1
1.3
2.54
1

ANL322522

3.6
2.8
2.6
0.8
0.55±0.1
2
2.8
1
