    ACS

    FEATURE
      ˙ Meet SONY SS-00259's criteria for lead-free product.
      ˙ Ceramic body and wire wound construction provide highest SRFs.
      ˙ These ultra - compact inductors provided exceptional Q values, even at high
    frequencies.
      ˙ Their ceramic construction delivers the highest possible SRFs as well as
    excellent Q values.
        The non-magnetic coil form also assures the utmost in thermal stability,
    predictability and batch consistency.
      ˙  CS series is standard parts for RF designers.

    APPLICATION
      ˙ For high-frequency applications including mobile phones,portable phones,
    such as PA, ANT, VCO, SAW, etc.
      ˙ Mobile phones such as GSM, CDMA, PDC, etc.
      ˙ Bluetooth, W-LAN


    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

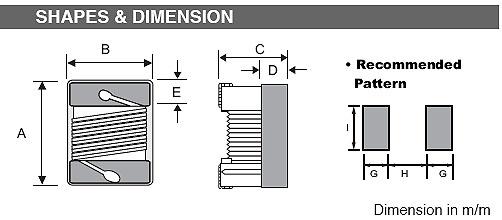

Photo Series Product Name Download A B C D E H I G Select

ACS0402

1.19mm
0.64mm
0.66mm
0.25mm
0.23±0.1mm
0.46mm
0.66mm
0.36mm

ACS0603

1.8mm
1.2mm
1.02mm
0.38mm
0.35±0.1mm
0.64mm
1.02mm
0.64mm

ACS0805

2.4mm
1.6mm
1.4mm
0.51mm
0.44±0.1mm
0.76mm
1.78mm
1.02mm

ACS1008

2.9mm
2.5mm
2.03mm
1.2mm
0.55±0.1mm
1.27mm
2.54mm
1.02mm
