• ACLH

    ACLH

    FEATURE
      ˙ Meet SONY SS-00259's criteria for lead-free product
      ˙ Cost Effective
      ˙ Small size of 1005/1608 is suitable for small portable equipment.
      ˙ Supports operating frequency up to 6GHz with nominal indutance values from 1.0nH to 330nH.
      ˙ Excellent Q factor and SRF characteristics.

    APPLICATION
      ˙ RF Resonance and Impedance Matching Circuit
      ˙ RF and wireless communication
      ˙ Information technology equipments, computers, telecommunications, radar detectors, automotive electronics, cellular phones, pagers, PDAs, keyless remote systems.
      ˙ Use in L-C filter configurations


    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

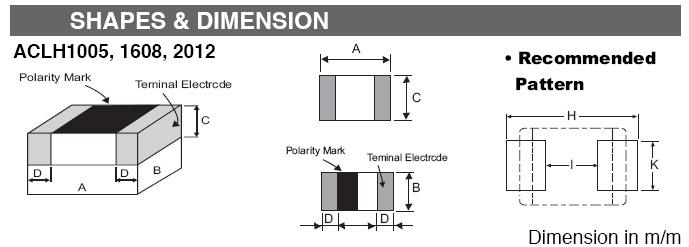

Photo Series Product Name Download A B C D I H K Select

ACLH1005

1.0±0.10
0.5±0.10
0.5±0.10
0.25±0.10
0.4
1.2~1.4
0.4

ACLH1608

1.6±0.15
0.8±0.15
0.8±0.15
0.3±0.2
0.8
2.4~3.4
0.6

ACLH2012

2.0±0.2
1.25±0.2
0.9±0.2
0.5±0.3
1.2
3.0~4.0
1
