• AFH

    AFH

    APPLICATION
      ˙ Filtering of power input pins of oscillators or logic devices using high speed dock.
      ˙ Filtering of owq frequency input / output signale entering / exiting shielded enclosure.
      ˙ High frequency filtering of medium speed docks and video signals.
      ˙ Preventing oscillationin high frequency amplifier.


    Specification

Please Click products below, and click Add to Inquiry List for inquiry.

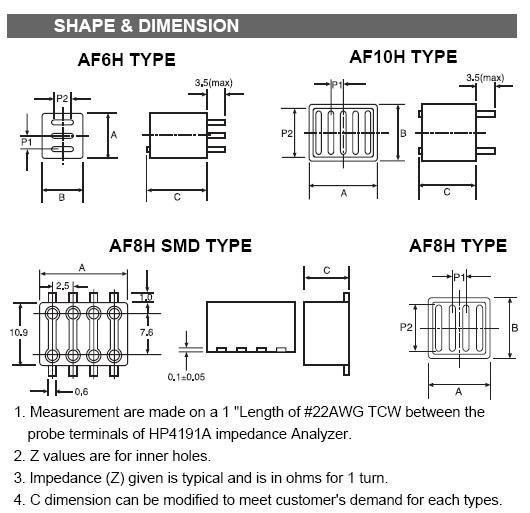

Photo Series Product Name Download A B C P1 P2 Impedance (25MHz) Impedance (100MHz) Select

AF6H1008-D

10.88
8.34
10.54
2.54
7.62
180Ω
245Ω

AF6H1008-S

10.88
8.34
11.4
2.54
7.62
180Ω
245Ω

AF6H1010-D

10.88
10.88
10.54
2.54
7.62
200Ω
300Ω

AF6H1010-S

10.88
10.88
11.4
2.54
7.62
200Ω
300Ω

AF6H1310-D

13.42
10.88
10.54
2.54
7.62
200Ω
300Ω

AF6H1310-S

13.42
10.88
11.4
2.54
7.62
200Ω
300Ω
